Topflashstar New DMX Mini 192 Controller Portable 4.2V 5600MA Battery Controller DMX Console

1. 192DMX CHANNEL

2. 8 Programmable SCENES.

3. 8 adjustable potentiometer to adjust the output size

4. built-in MIC head, and voice features

5. Automatically trigger state, the TAP SYNC button or the SPEED potentiometer to determine automatically trigger time

6. The four LED digital display

7. show the first show CHANSES second place display SCENES

8. Third, the four display BANKS

9. three, four steps 0-255 or TIME

10. BLACK OUT function can be used manually or MIDI remote control.

11. CHASES programming and CHASES run function can be used manually or MIDI remote control

12. output delay function, the FADE TIME potentiometer to adjust the delay time.

13. DMX output polarity selection

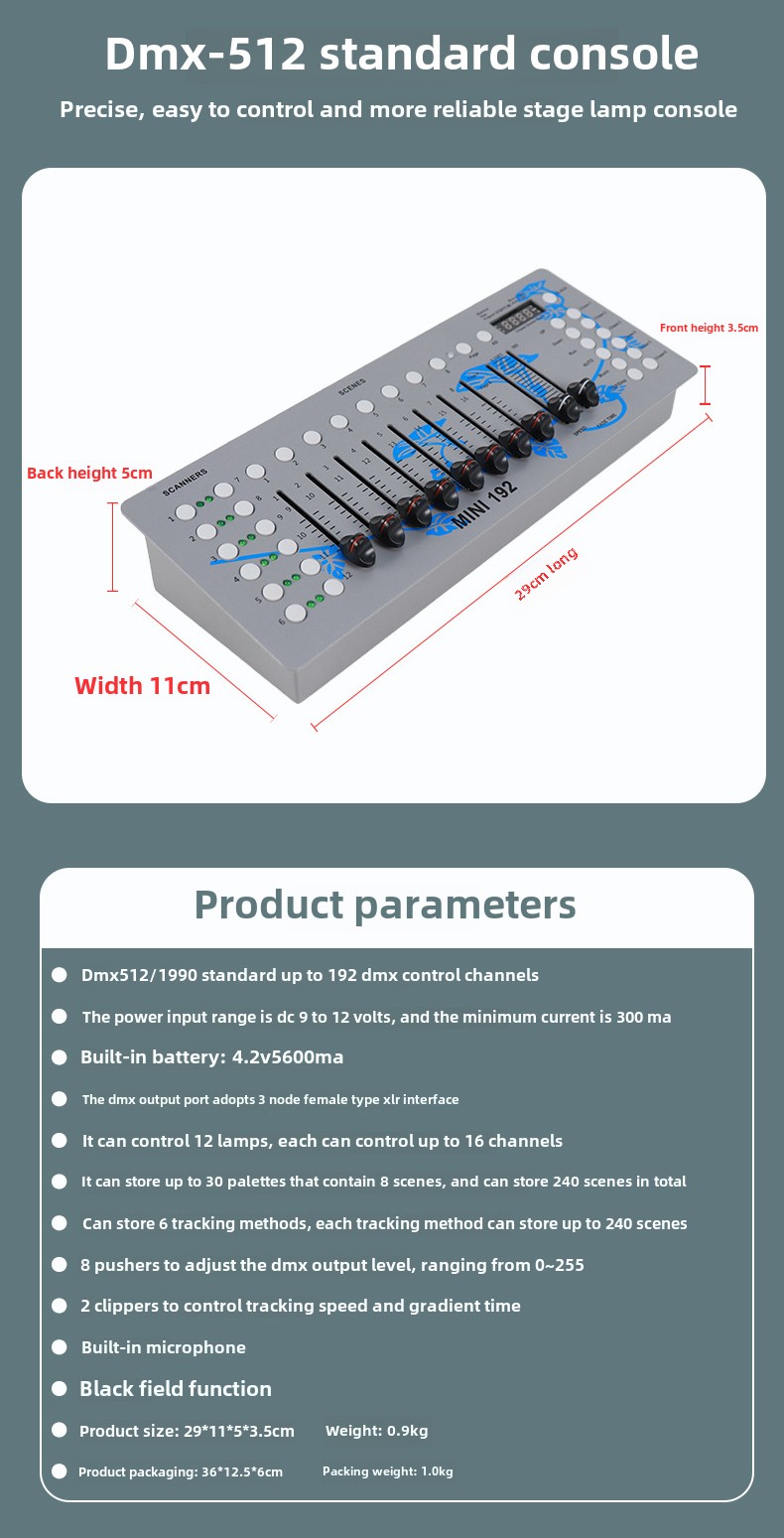

14. Product parameters

15. Voltage: Input DC9-12V / USB-5V

16. Internal battery: 4.2V/5600MA

17. The console switch must be turned on when charging.

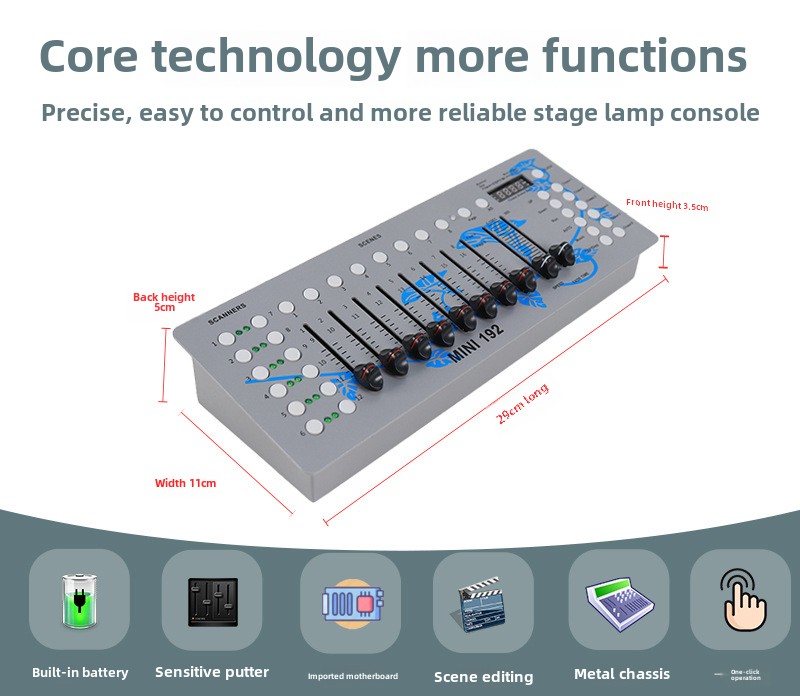

18. Product Size: 29 X 11 X 5 cm

19. Weight: 1.3KG

Package Including:

1 x 192ch DMX Controller

1 x Power Adapter

1 x USB cable

price：36USD

Product Detail

Power and Battery Features:
- Multi-voltage: 110V/220V, 50/60Hz.
- Power input range of 9 to 12 volts DC with a minimum current of 300 mA.
- Rechargeable battery: 4.2V 5600ma.
DMX Output and Control Capabilities:

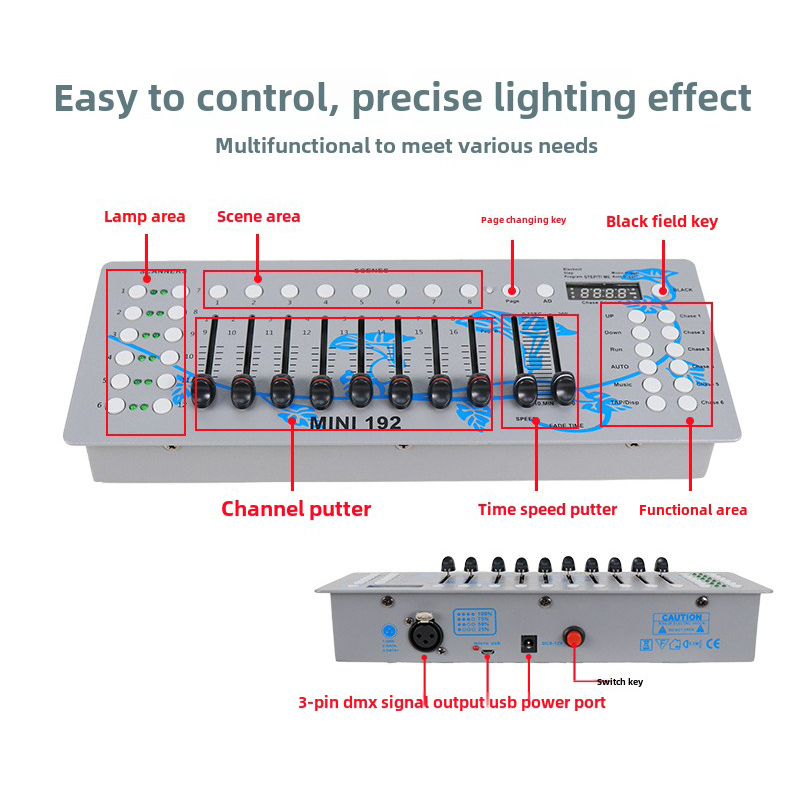

- DMX output port with 3-node female XLR interface.

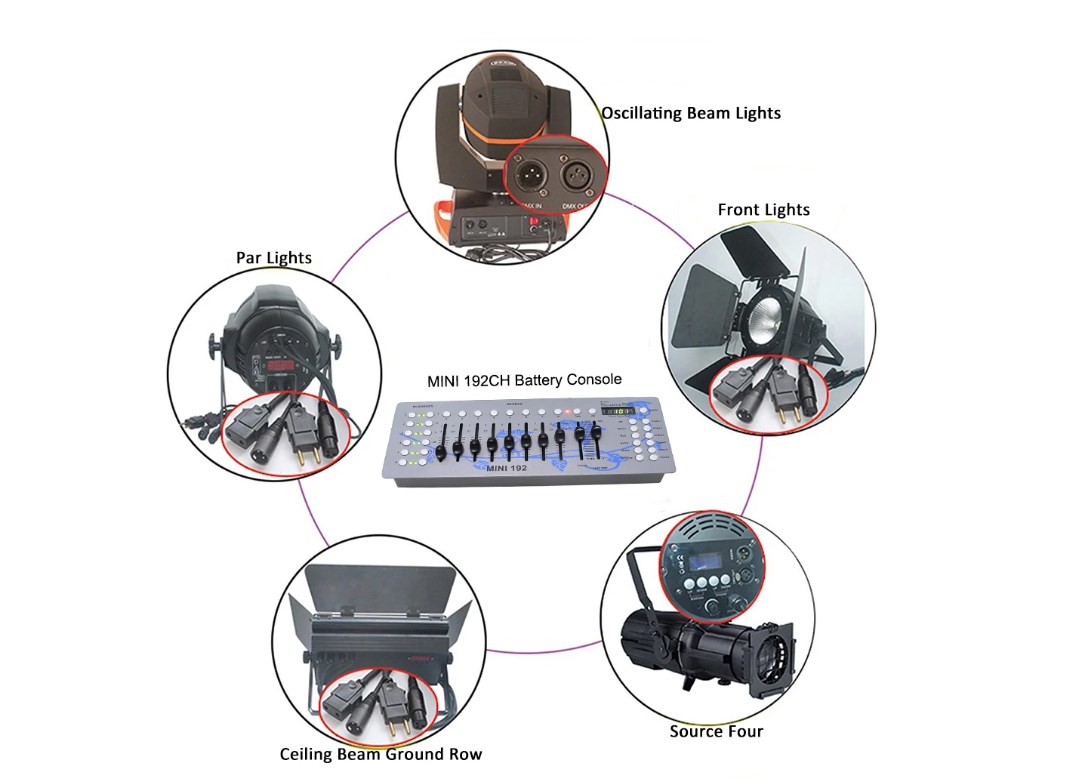

- Control up to 12 fixtures, up to 16 channels per fixture.
- 8 faders to adjust DMX output level from 0 to 255.
Scene and Tracking Storage:
- Up to 30 color palettes containing 8 scenes can be stored, a total of 240 scenes can be stored.
- Storage for 6 tracking methods, up to 240 scenes per tracking method.
